2  Measures of dispersion and visualizing relationships

2.1 Learning goals

2.1.1 Conceptual

  1. Understand and interpret common measures of dispersion
  2. Interpret scatterplots and crosstabulations

2.1.2 SPSS

  1. Add measures of dispersion to your descriptive statistics output
  2. Create scatterplots (interval/ratio data) and crosstabulations (nominal and ordinal data)
  3. Recode existing data into new variables

2.2 Measures of dispersion

In this course, we will consider three measures of dispersion.

2.2.1 The standard deviation

The standard deviation is defined as:

\[ S = \sqrt\frac{\sum_{i=1}^{n}{(x_i-\bar{x})^2}}{n-1} \]

Computation of the standard deviation involves:

  1. Calculating the sample mean \(\bar{x}\)
  2. Subtracting \(\bar{x}\) from each “raw” value of \(x\) to compute deviations
  3. Squaring the deviations from step 2 \((x_i - \bar{x})^2\)
  4. Summing the deviations \(\sum_{i = 1}^{n}\)
  5. Dividing the deviations by the number of observations (\(n\)) minus 1
  6. Taking the square root of 5

The standard deviation can be roughly interpreted as the average deviation from the sample mean in the data. Much like the mean, this measure of dispersion is most appropriate for interval/ratio level data.

2.2.2 The range

The range is simply the difference between the maximum and minimum values in the data, and can be written as:

\[ range = max(x_1, x_2, ..., x_n) - min(x_1, x_2, ..., x_n) \]

2.2.3 The interquartile range (IQR)

This represents the spread of the middle 50% of the data and is calculated as:

\[ IQR = Q_3 - Q_1 \]

\(Q_3\) and \(Q_1\), are, respectively, the 75th and 25th percentiles of the data.To find these for data \(x\) with \(n\) elements:

  • \(Q_1(x) = x_{(\frac{n+1}{4})}\)

  • \(Q_3(x) = x_{(\frac{3(n+1)}{4})}\)

Where the position index for the quartile is not a whole number, we can average the values from the two nearest whole number positions to find our quartile. For example, for data with \(n = 100\):

  • \(Q_1(x) = x_{(\frac{101}{4})} = 25.25\)

In the above case, we would average the 25th- and 26th-ranked values of \(x\) to find \(Q_1(x)\).

2.3 Visualizing relationships between variables

2.3.1 Scatterplots

Scatterplots are useful for visualizing relationships between interval/ratio variables. In this course, our convention will be to place independent variables (IVs) on the x-axis and dependent variables (DVs) on the y-axis.


Note 2.1: IVs and DVs

An independent variable is the presumed cause of effects on a dependent variable. See the lecture notes for further information.


The variables wdi_lifexp (life expectancy at birth) and wdi_sanitation (percentage of population with access to improved sanitation) are appropriate for scatterplotting. If there is a causal relationship between these two variables, then the most intuitive direction of influence would be from wdi_sanitation to wdi_lifexp, so wdi_sanitation will be our IV (x-variable) and wdi_lifexp our DV (y-variable).

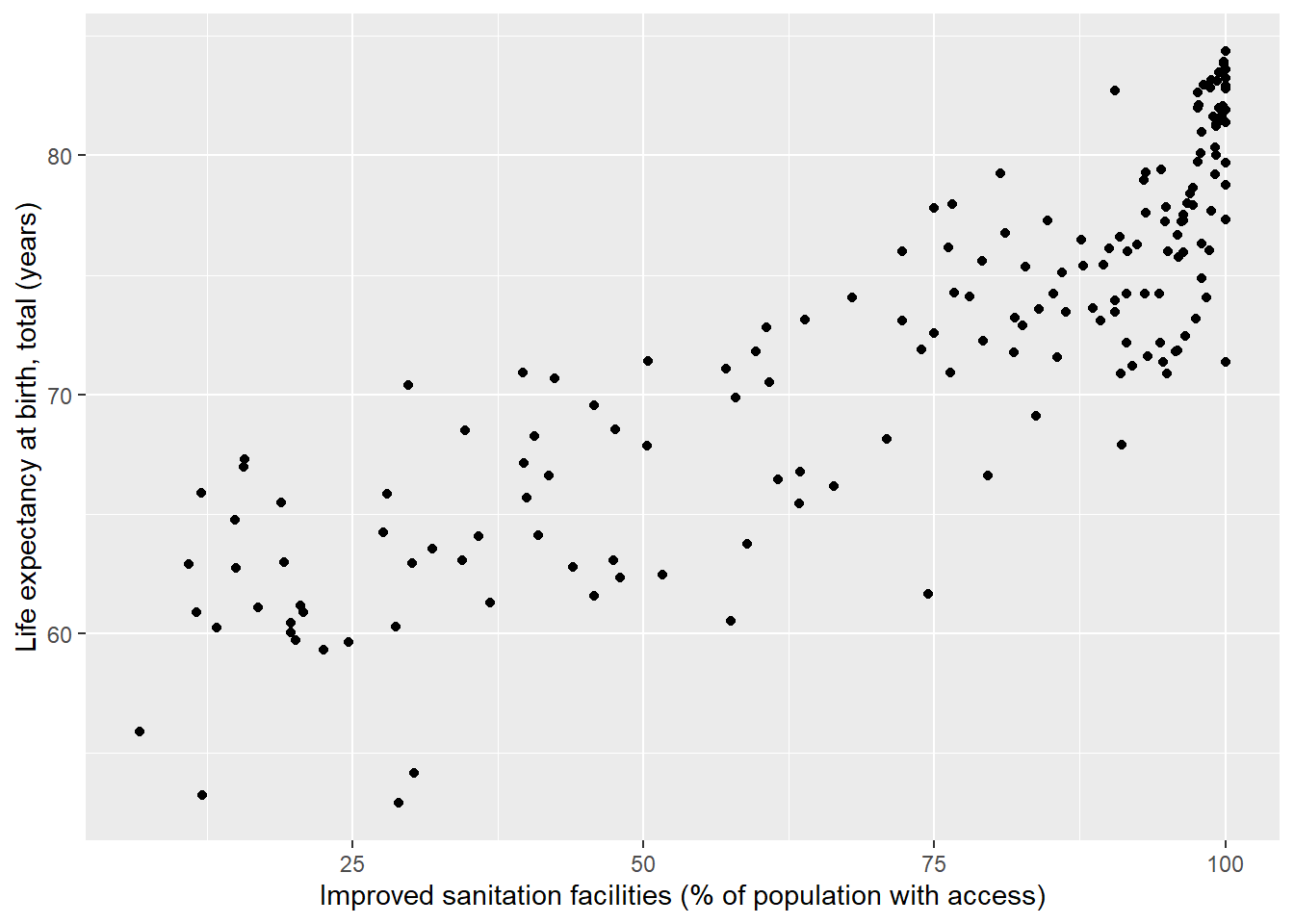

Figure 2.1: Access to sanitation vs. Life exp.

We can see a noisy, yet positive relationship between a country’s percentage access to an improved water source and its life expectancy at birth. It is also possible to fit a linear model to the data and plot the fit line:

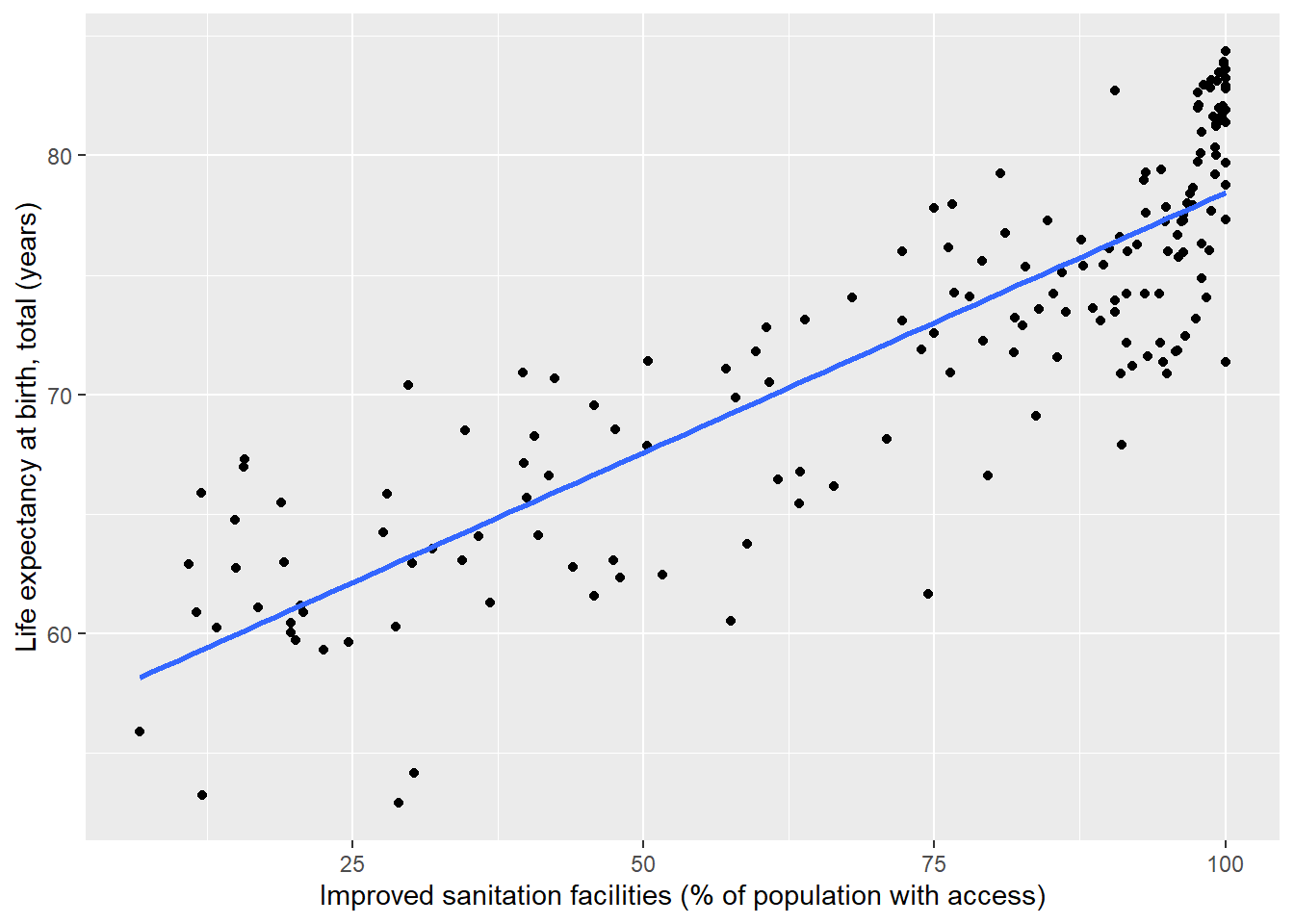

Figure 2.2: Adding a linear fit line

2.3.2 Crosstabulations

Crosstabulations (crosstabs) are a useful method for visualizing relationships among combinations of ordinal and nominal-level variables with relatively few unique categories. For example, let’s imagine we are interested how freedom of the press varies across countries in different regions of the world. In the World Development Indicators dataset (WDI), we can examine this with the variables region and fhp_status5 (freedom of the press score, as rated by Freedom House). region is measured at the nominal level (as we cannot rank regions based on name alone), where fhp_status5 has ranks press freedom from 1 (“Free”) to 3 (“Not Free”).

A simple crosstab will show us the number of countries within regions which fall into the different categories of press freedom, and also give us the marginal counts.1 On this course, our convention will be to place IVs in the columns and DVs in the rows, so our most logical approach would be to place region in the columns and fhp_status5 in the rows. This allows us to see how the distribution of counts across the levels of press freedom (the DV) vary across the different regions (the IV). In other words, we compare counts horizontally, between different regions.

East Asia & Pacific Europe & Central Asia Latin America & Caribbean Middle East & North Africa North America South Asia Sub-Saharan Africa Total
Free 13 27 14 1 2 0 3 60
Partly Free 7 14 14 4 0 4 26 69
Not Free 10 11 5 15 0 4 18 63
Total 30 52 33 20 2 8 47 192
Table 2.1: Count crosstab of region vs. press freedom

While we can see trends, it can be more informative to view the press freedom category counts as percentages (or proportions) within countries. This adjusts for differences in the number of countries within regions and shows us the proportional distribution of counts for the freedom categories.

East Asia & Pacific Europe & Central Asia Latin America & Caribbean Middle East & North Africa North America South Asia Sub-Saharan Africa Total
Free 43.33 51.92 42.42 5 100 0 6.38 31.25
Partly Free 23.33 26.92 42.42 20 0 50 55.32 35.94
Not Free 33.33 21.15 15.15 75 0 50 38.30 32.81
Total 100.00 100.00 100.00 100 100 100 100.00 100.00
Table 2.2: Percentage crosstab of region vs. press freedom

2.4 SPSS explainer video (World Data)

  1. Measures of dispersion
  2. Scatterplots
  3. Recode
  4. Crosstabs

See video ‘ISA2’ here. (UvA login required)

  1. That is, the counts in the categories of one variable when we ignore the levels of the other.↩︎
